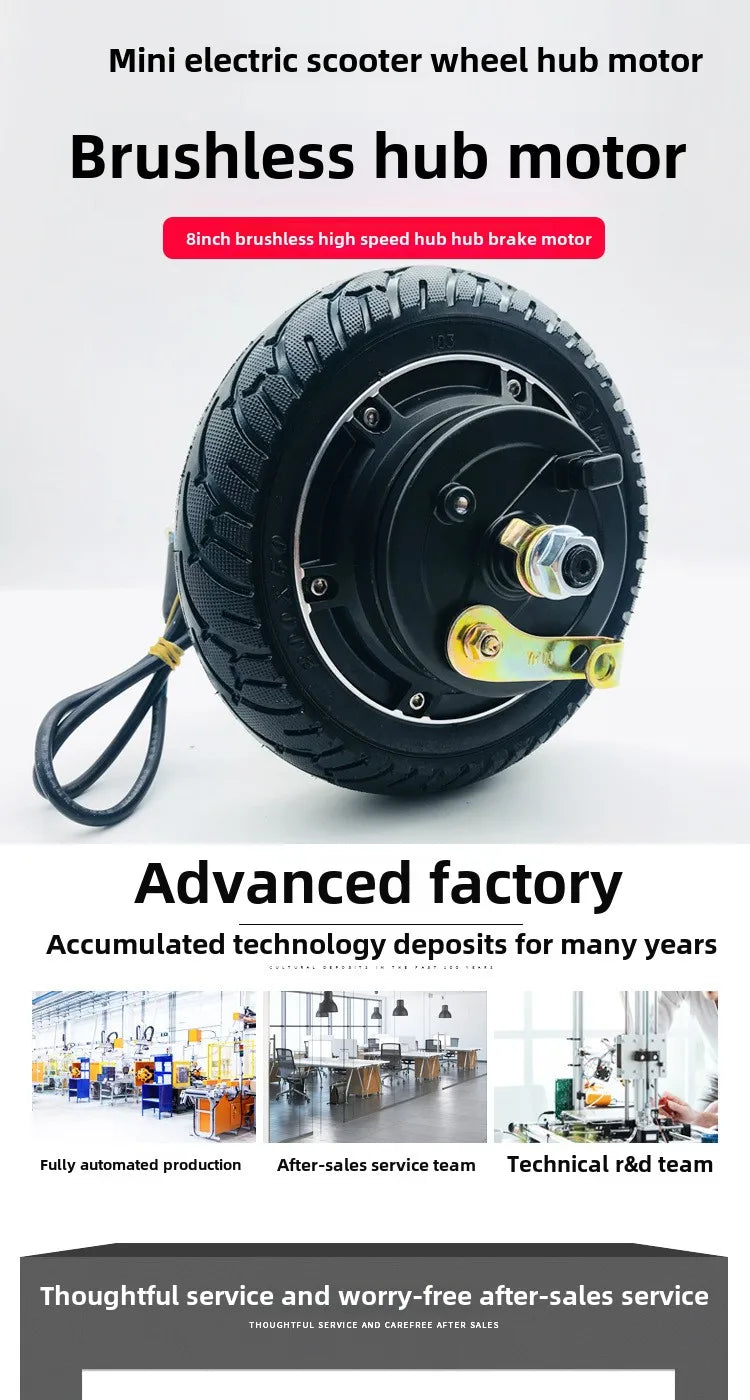

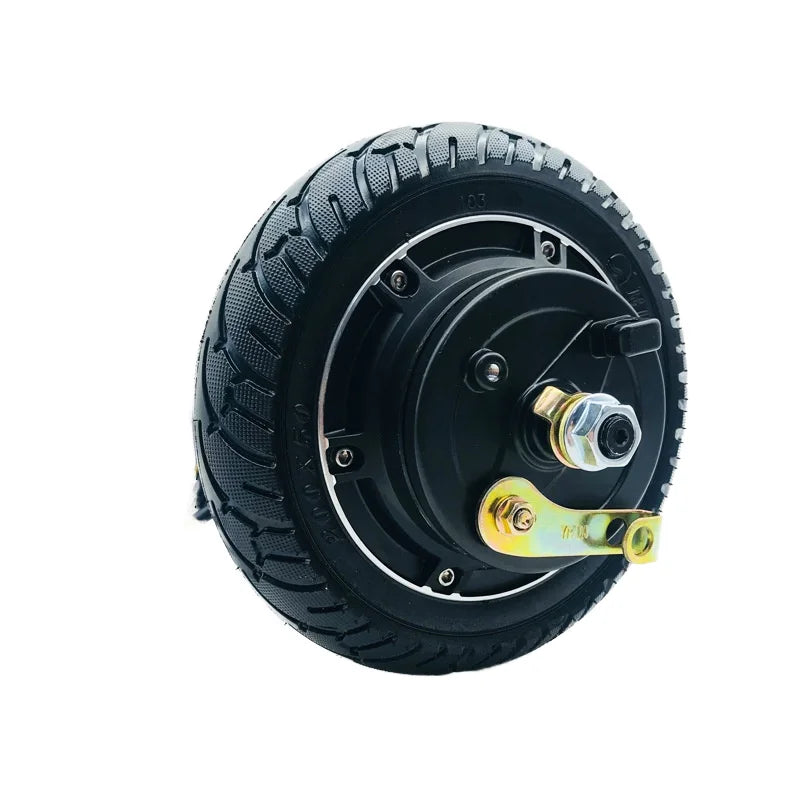

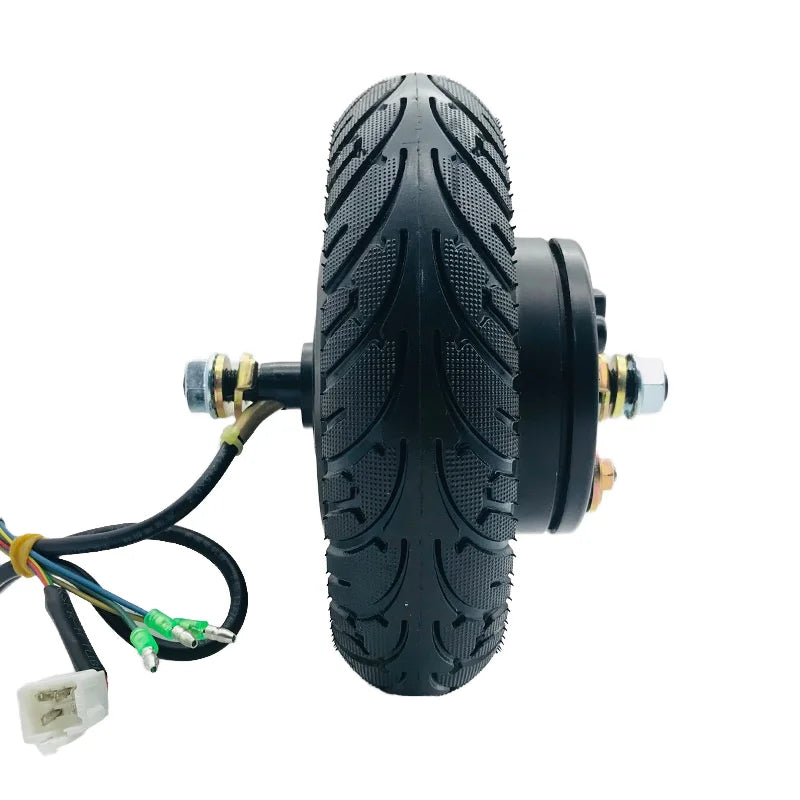

24V/36V/48V 350W Electric Scooter Motor 8 Inch Solid Tire Drum Brake Brushless Commutation Hub Motor BLDC in Wheel Motor
24V/36V/48V 350W Electric Scooter Motor 8 Inch Solid Tire Drum Brake Brushless Commutation Hub Motor BLDC in Wheel Motor
SPECIFICATIONS
Application: Electric Scooter,Kick scooter
Brake Type: drum brake
Brand Name: TECICLO
Certification: CE
MOQ: 1pc
Model Number: T-HM-008C

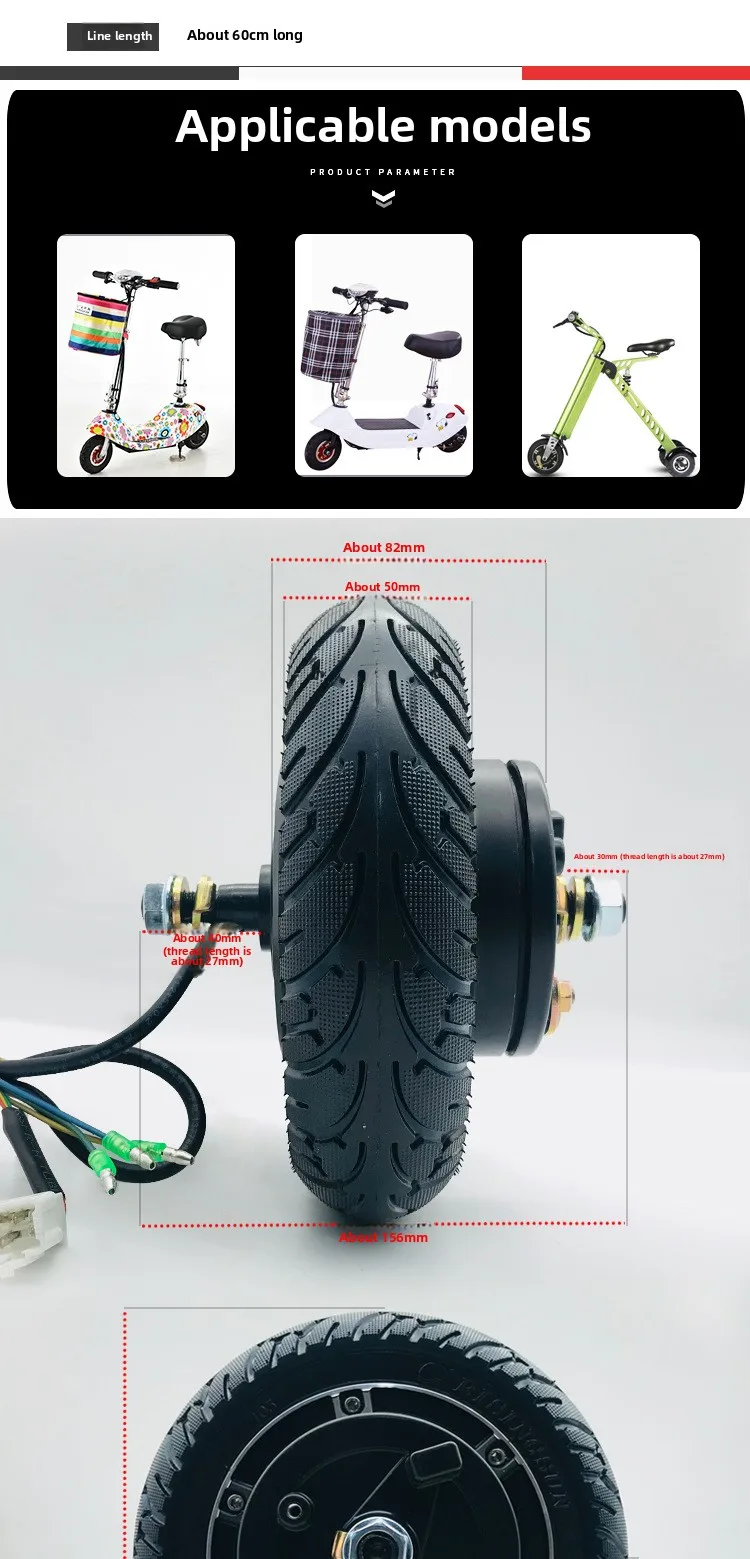

Motor Diameter: 8 inch
Motor Power: 250 W,350 W
Motor type: dc brushless gearless hub motor with hall sensor
Noise: 55db
Place of Origin: Sichuan, China
Usage: Electric Scooters
Voltage: 24 V,48 V,36 V
Weight: 3.2kg

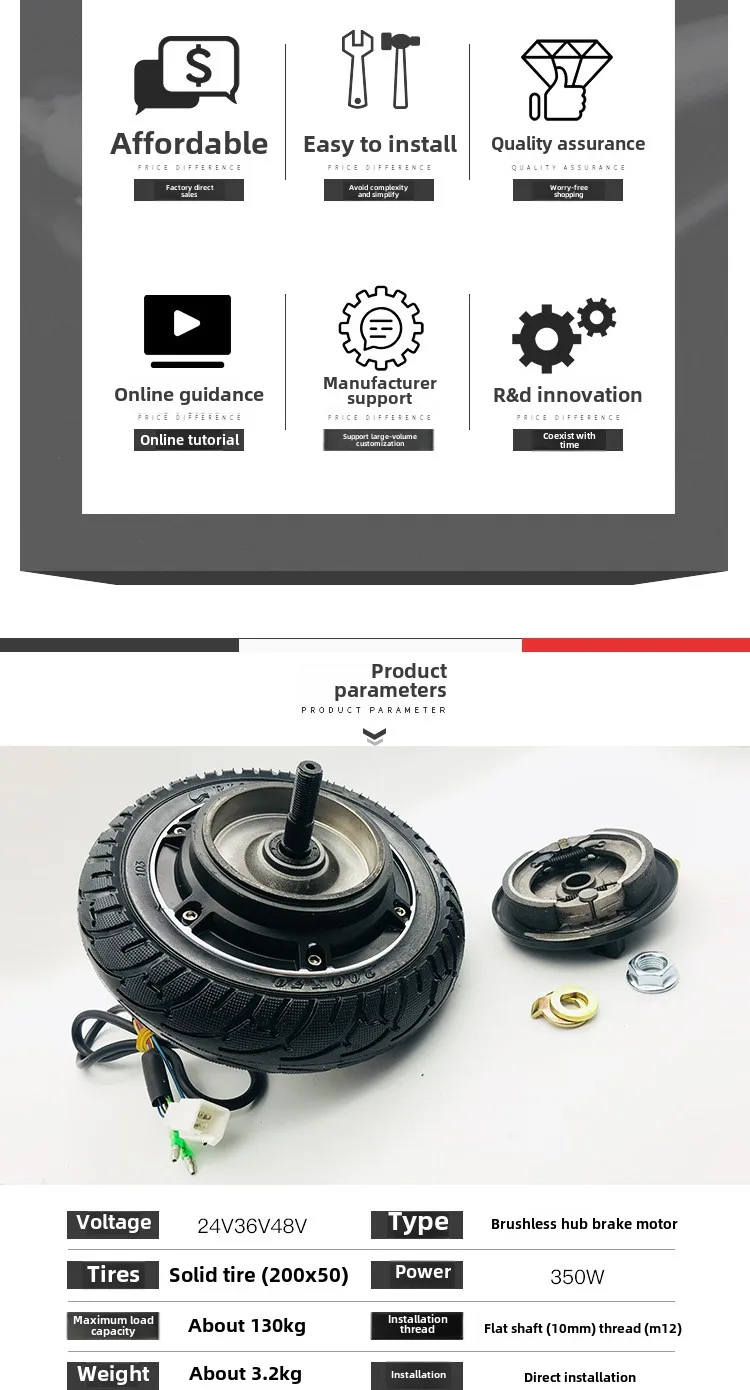

| Brand | TECICLO |
| Model | T-HM-008C |

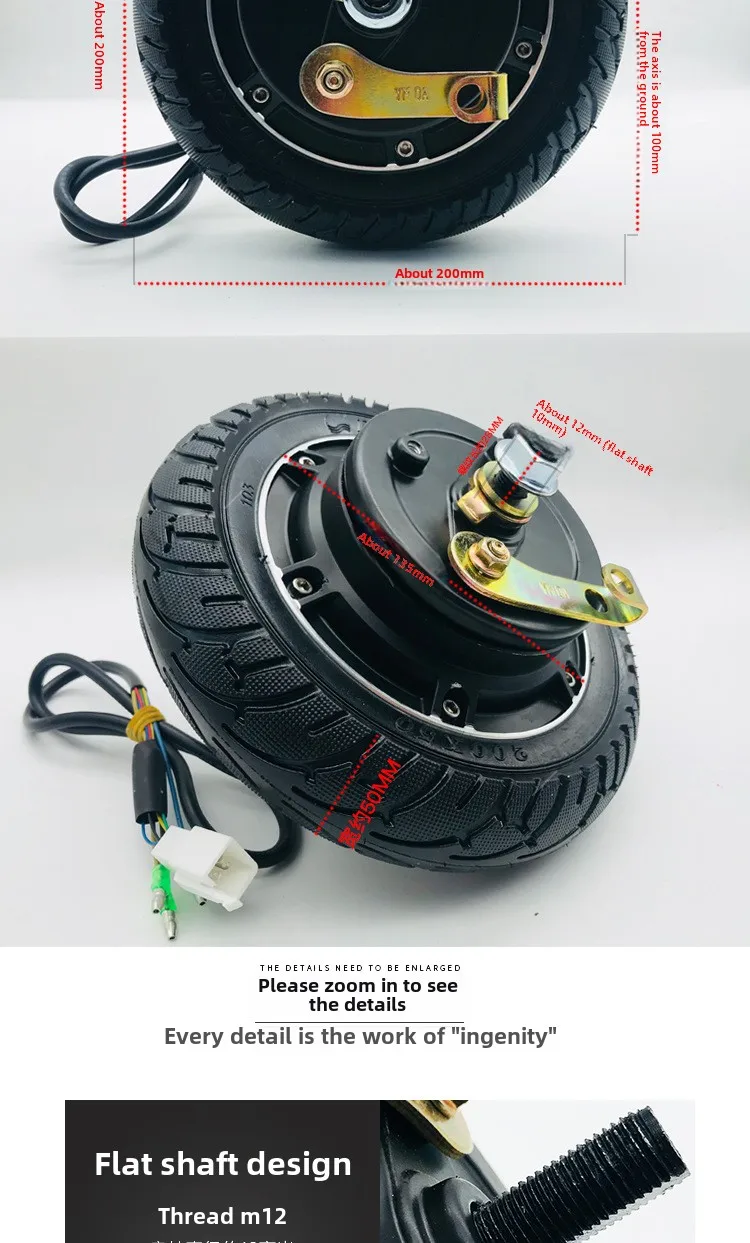

| Size | 8inch (200mm) |
| Motor Type | DC brushless gearless hub motor |
| Voltage | 24V/36V/48V |
| Power | 350W |
| Rated current | 10A |
| Rated Speed | 700 rpm |
| Max Speed | 1000 rpm |
| Rated Torque | 4.5 N/m |
| Max Torque | 14 N/m |
| Brake method | drum brake |
| Weight | 3.2kg |
| WIth Hall Sensor | Yes |
| Tire type | solid rubber tyre |
| Ambient temperature | —20~+40℃ |
| Max Load | 150kg |
| Waterproof grade | IP54 |
| Shaft Type | Dual axis |

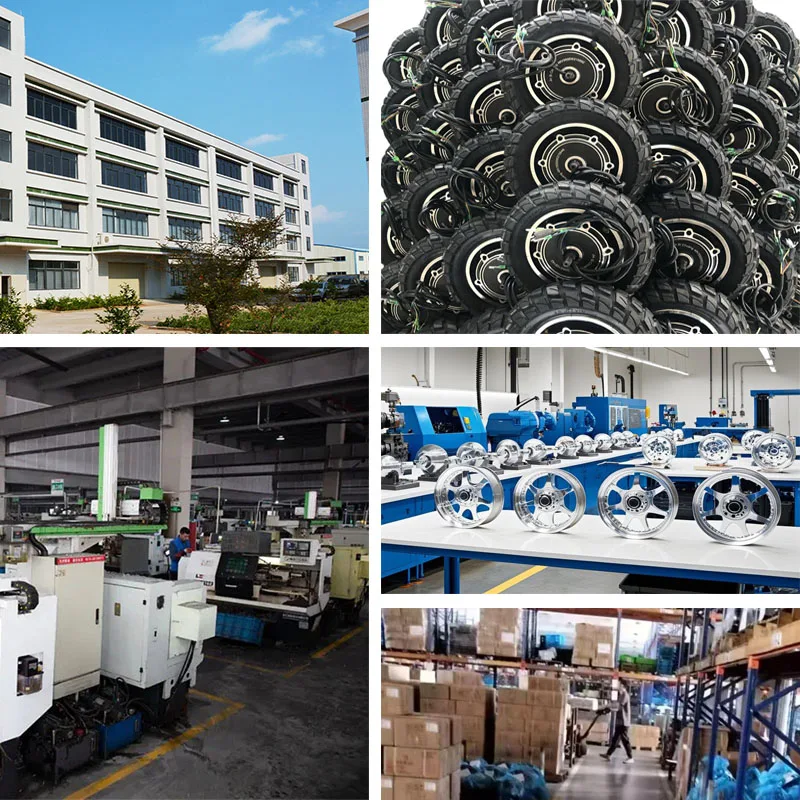

Sichuan YiLaiYi Electronic Technology Co.,Ltd holds the registered trademark TECICLO® , has been awarded patents and GB/T 19001 and ISO9001, CE certification.
As a premier Chinese manufacturer and global exporter of DC brushless hub motor wheel systems, Our products are extensively implemented in electric mobility applications including but not limited to e-scooter, motorized wheelbarrow, electric cart, AGV robotics, and smart logistics equipment.
Up to now, TECICLO® has exported products to over 30 countries. Now the comprehensive technical support and customized solutions have made we become an important player in this sector. We cordially invite global partners to initiate collaborative discussions and explore mutually beneficial business synergies.
