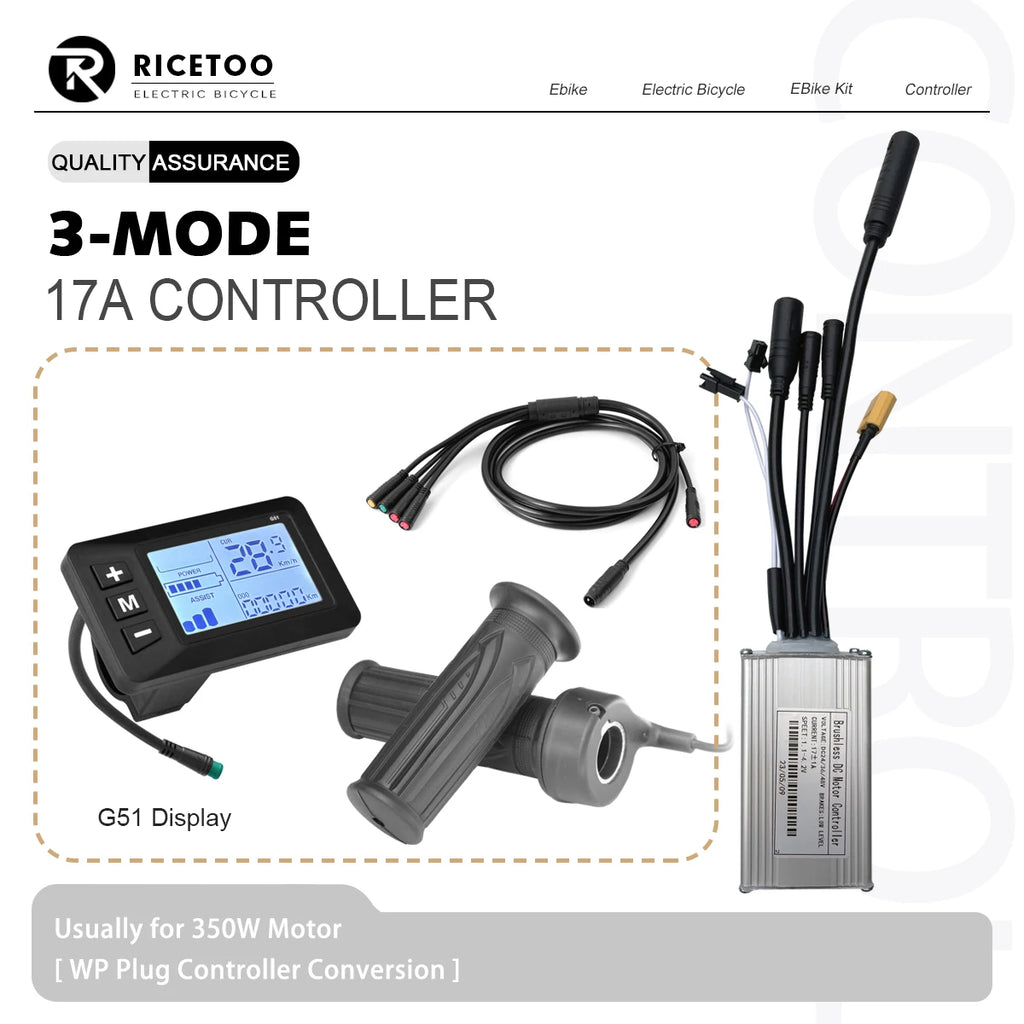

17A26A30A Ebike Brushless Motor Controller 350W/750W/1000W Sinewave Controller G51 LCD Display UART2 Protocol for Scooter E-Bike

€162,90

€162,90 €0,00

Color 17A G51 WP 26A G51 WP 30A G51 WP 17A WP 26A WP 30A WP 17A G51 20X WP 26A G51 20X WP 30A G51 20X WP

SPECIFICATIONS

Brand Name: RICETOO

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Type: Controller

semi_Choice: yes

To prevent the controller from being incompatible with your display, I suggest that you purchase the controller and display together

P02: mileage unit, 0: KM; 1: MILE;

P03: Voltage level: 24V, 36V, 48V, 60V, 64V default 36V;

P06: Wheel diameter: unit, inch; Precision: 0.1;

This parameter is related to the meter display speed and needs to be entered correctly;

P07: Speed gauge magnetic steel number: range: 1-100;

This parameter is related to the meter display speed and needs to be entered correctly;

If it is an ordinary hub motor, direct input of magnetic steel;

If it is a high-speed motor, it is also necessary to calculate the deceleration ratio, and the input data = the number of magnetic steel × deceleration ratio;

For example: number of motor magnets 20, deceleration ratio 4.3: input data is: 86 = 20 × 4.3

P08: Speed limit: range 0-100km / H, 100 means no speed limit,

The input data here represents the maximum operating speed of the vehicle: for example, input 25, indicating that the maximum operating speed of the vehicle will not exceed 25km/h; Drive speed maintained at set value,

P09: zero start, non-zero start setting, 0: zero start; 1: Non-zero start;

P13: Power Magnetic Steel Disk Type Setting 5, 8, 12 Magnetic Steel Types
