Welcome to Winwin ,

We offerPCB,PCB assembly,all kinds of components(LRC and all the parts you need ),

SMT Stencil , Modules,electronic Cables,customzied Sensors .Aluminum heatsink etc
good quality,reasonable prices and stylish designs according to your need ,
We will always make our effort to satisfy with you , looking forward to your contact .
more quanity please contact me to get the special discount !
wish you have a nice shopping .
RF wideband amplifier module low noise amplifier LNA module 0.1-2000MHz gain 32dB

Precautions
1. The module must first connect the input terminal (RFin) and output terminal (RFout), and finally connect the power supply (DC) to the DC power supply.
2. When the module supplies DC power, be sure to connect the positive and negative poles of the DC correctly. Do not reverse the connection! Otherwise, the module will be damaged!

advantage
1. The amplifier has the advantages of wide frequency range, high gain and low noise figure.
2: Can be used for various radio frequency receiving front-ends to increase communication distance
3. Large-scale shortwave, FM broadcast, remote control receiver, cable TV signal amplifier 3: Amplifiers and other places that require low noise and small signal RF amplification
4.Wide range of use
5. Safe to use

Technical indicators
1) Working frequency: 0.1-2000MHz

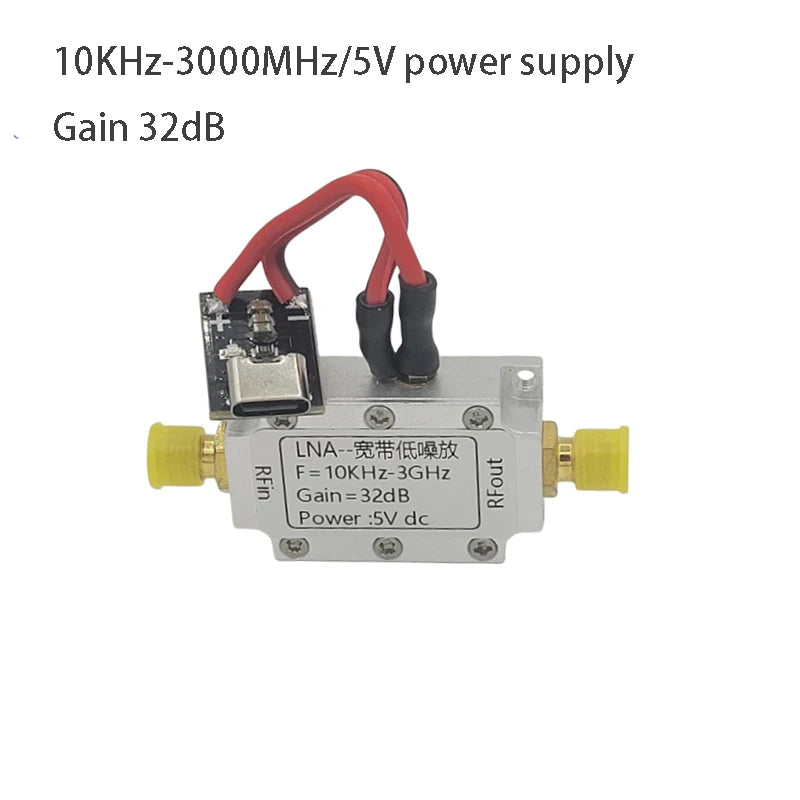

2) Working voltage: 9-12V (suitable for battery power supply) 10KHZ-3000MHZ5V version is equipped with type-c5V power supply
3) Working current: 22mA
4)Amplification gain: 32dB (typ.)
F= 0.1MHz, gain=32dB
F= 500Mhz gain=32dB
F=1000MHz gain=32dB
F=1500Mhz Gain=32dB
F=2000MHz gain=32dB
F=2500MHz gain=30dB
F=3000MHz gain=29dB
5)Maximum output: 13dBm (20mW)
6) System impedance: 50 ohms
7) Connector model: SMA-K (internal thread, external thread, internal hole)

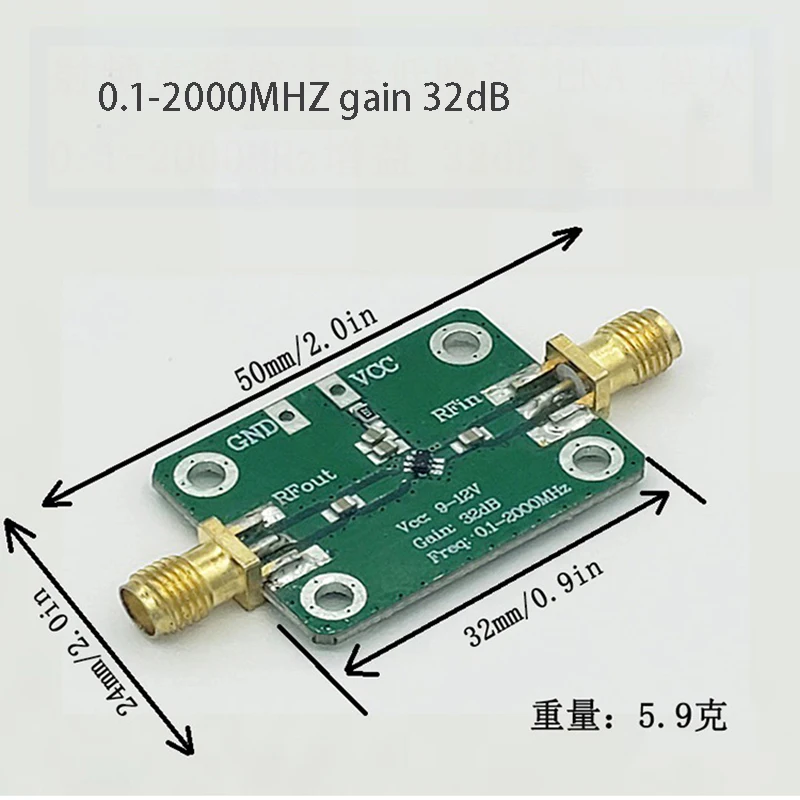

8) Size: 25*33mm (excluding connector)

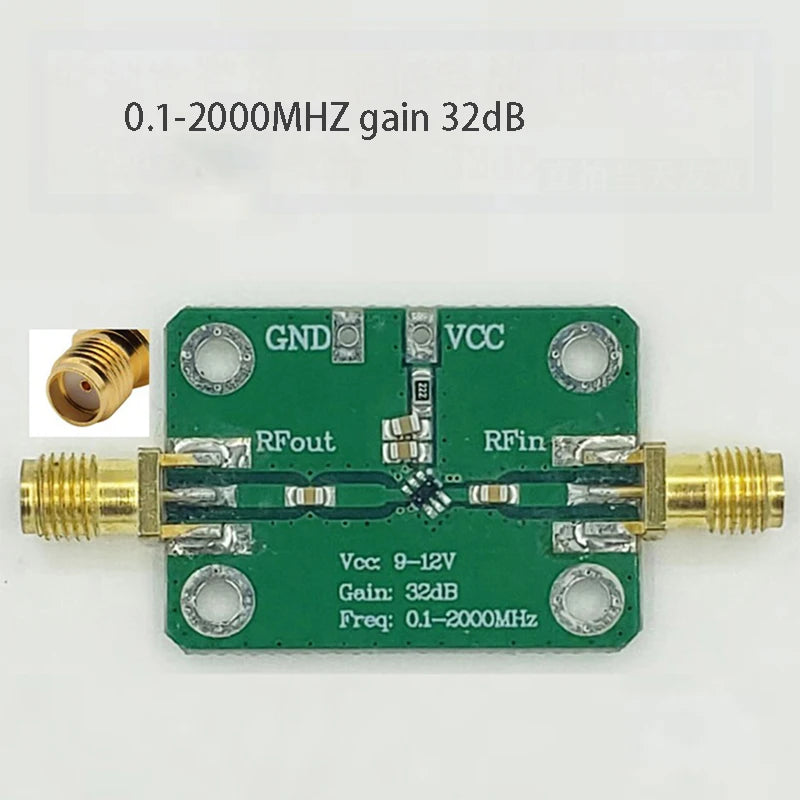

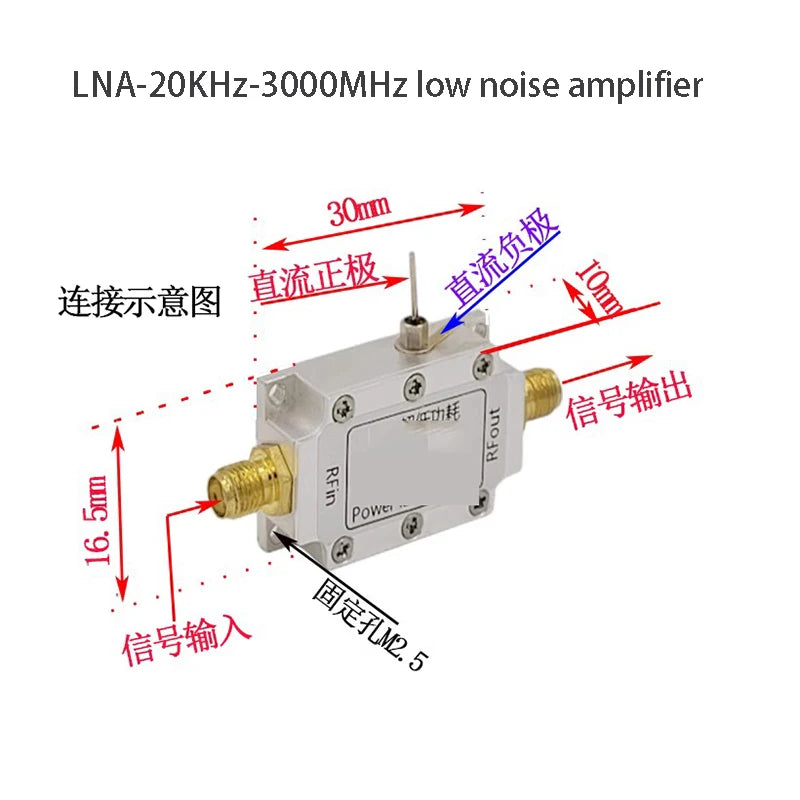

Instructions
RFin: input signal amplification
RFout: Output amplified signal
VCC: Positive power supply (for batteries)
GND: Negative pole of power supply
