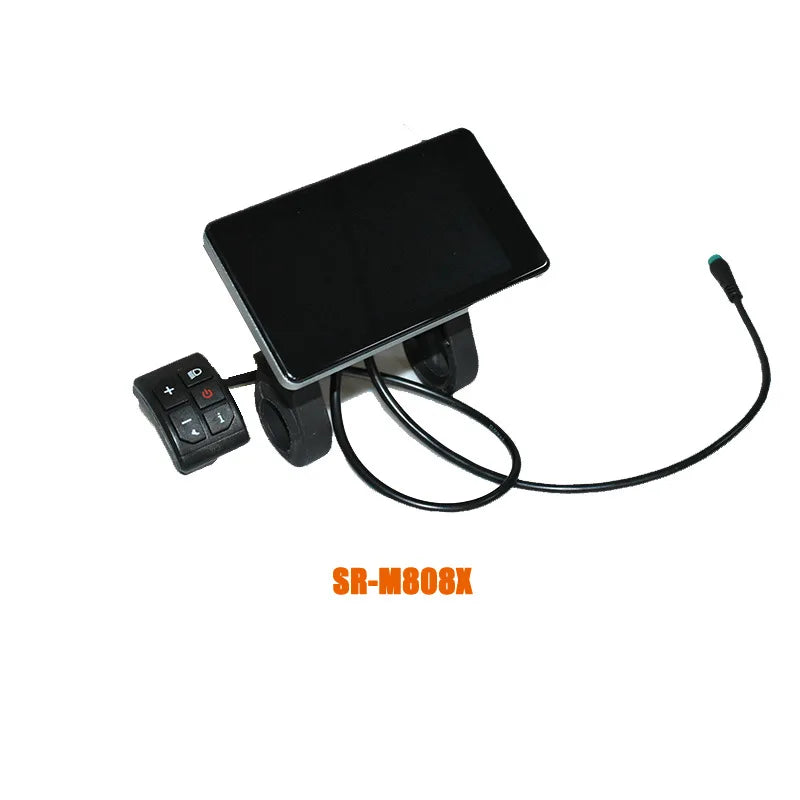

808 4-Inch LCD Display for E-Bike 24V-72V – with Light Sensor & NFC Keyless Start
808 4-Inch LCD Display for E-Bike 24V-72V – with Light Sensor & NFC Keyless Start
SPECIFICATIONS
Brand Name: NONE
Certification: CE
Custom processing: Yes
Dimensions: 8*8*15
High-concerned chemical: none
Measurement accuracy: 0.1
Measurement range: 0-99
Model: SR-M808X
Origin: Mainland China
Scope of application: 24-72V
Specifications: Standard version, waterproof version
Model: SR-M808X
Core Features

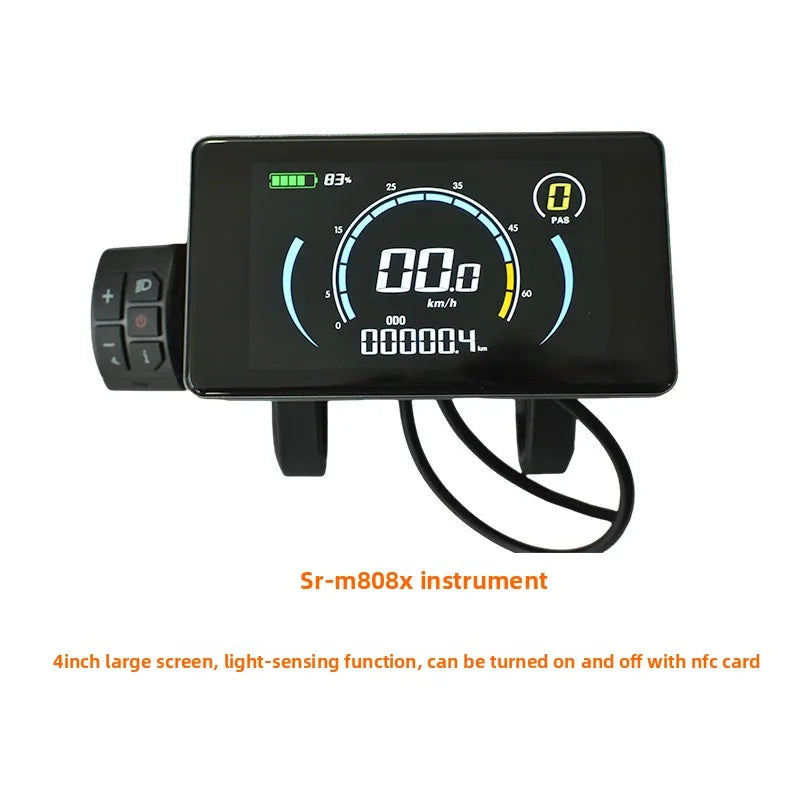

- 4-inch large LCD screen

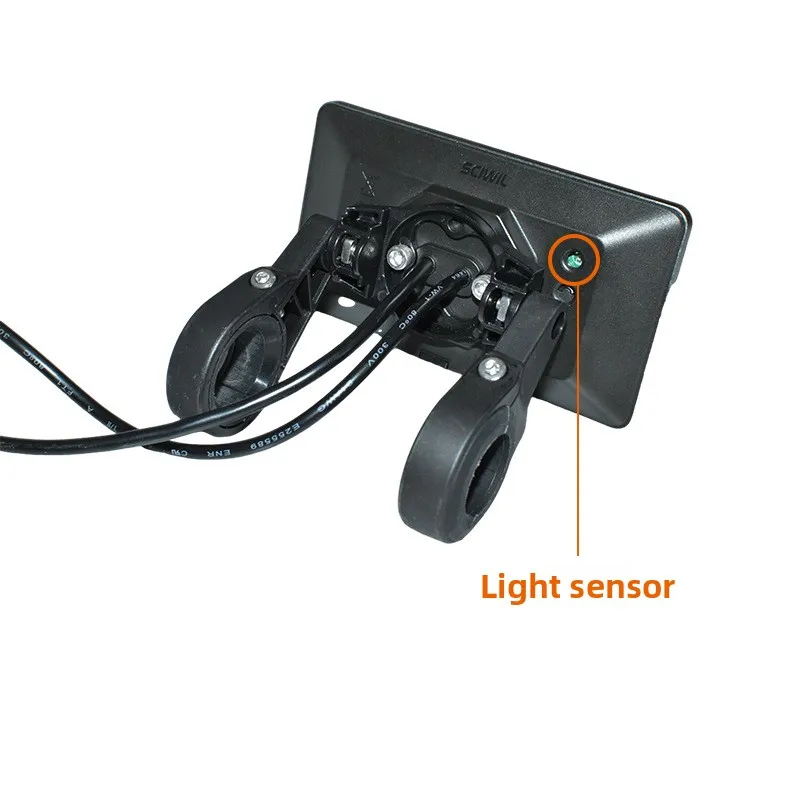

- Ambient light sensing function
- NFC card power on & power off support
Electrical Parameters
- Operating Voltage: DC 24V / 36V / 48V / 60V / 72V
- Rated Operating Current: 12mA
- Leakage Current: Less than 1μA
- Screen Size: 4.0-inch LCD
Temperature Range
- Operating Temperature: -20°C ~ 60°C
- Storage Temperature: -30°C ~ 70°C
Bootpassword
Systemunitswitch(km/hormph)
AssistLevelControlandDisplay
Batteryindication:batterylevelpercentage,lowvoltageindication
Speeddisplay：(inkm/hormph)
Distance：single-tripdistance(TRIP),totaltraveldistance(ODO)
AssistModeControlandDisplay(3/5/9levels)
Walkassistmode
Frontlightindication:frontlightstatussupportedbycontroller.
Errorcodeindication
RidingInfo:BrakingStatus,FrontLightStatus,Cruise,LowVoltage.
TurningSignals:Thisfunctionworkswithcontroller.
DualDriveControlandDisplay:Thisfunctionworkswithcontroller.
StatusofDoubleBatteryPacks:optional,workswithcontroller.

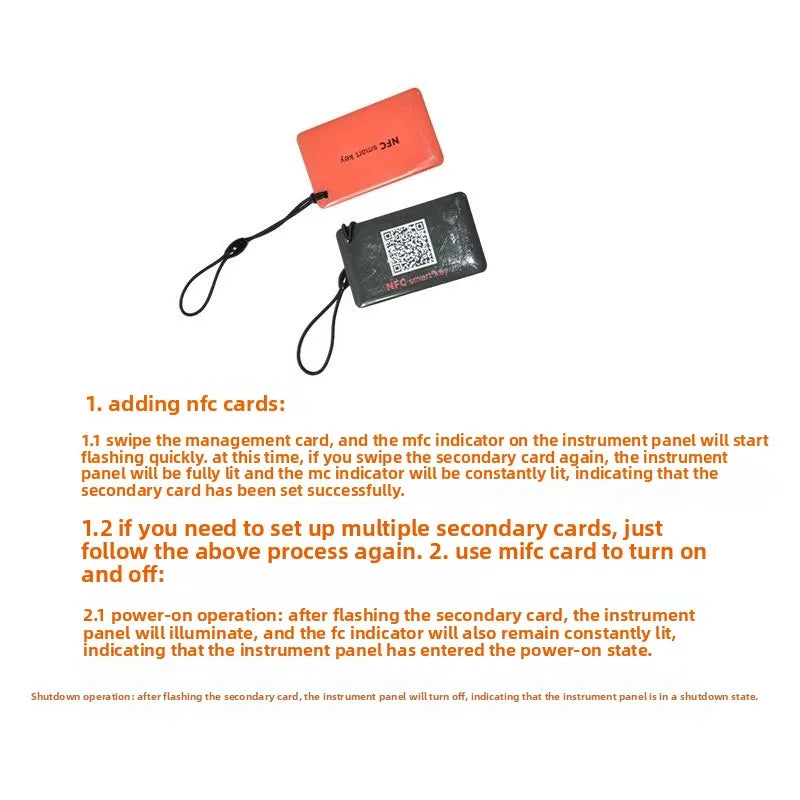

NFCFunction:optional.
BluetoothConnection:optional,supportOTAupgradeviamobilephone
