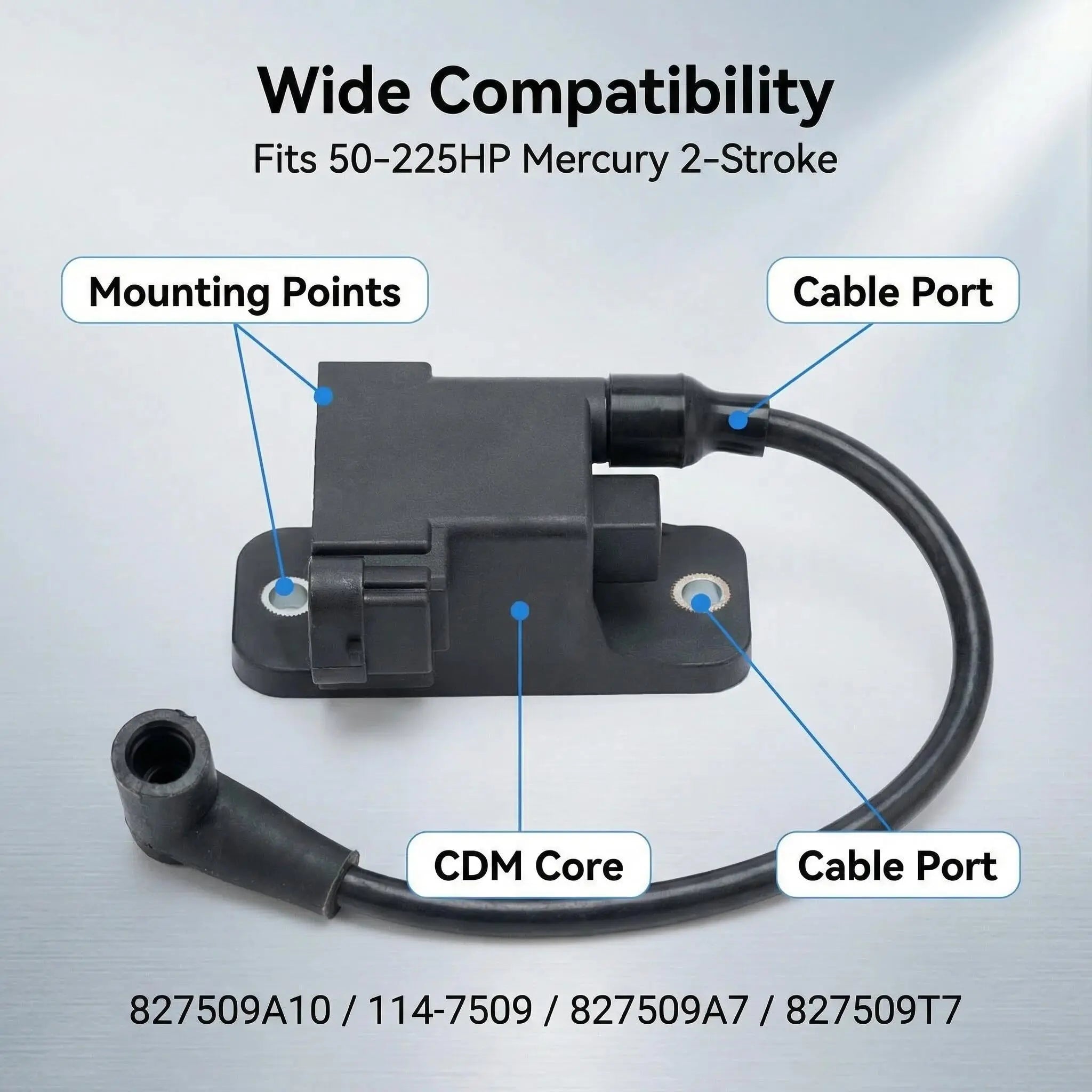

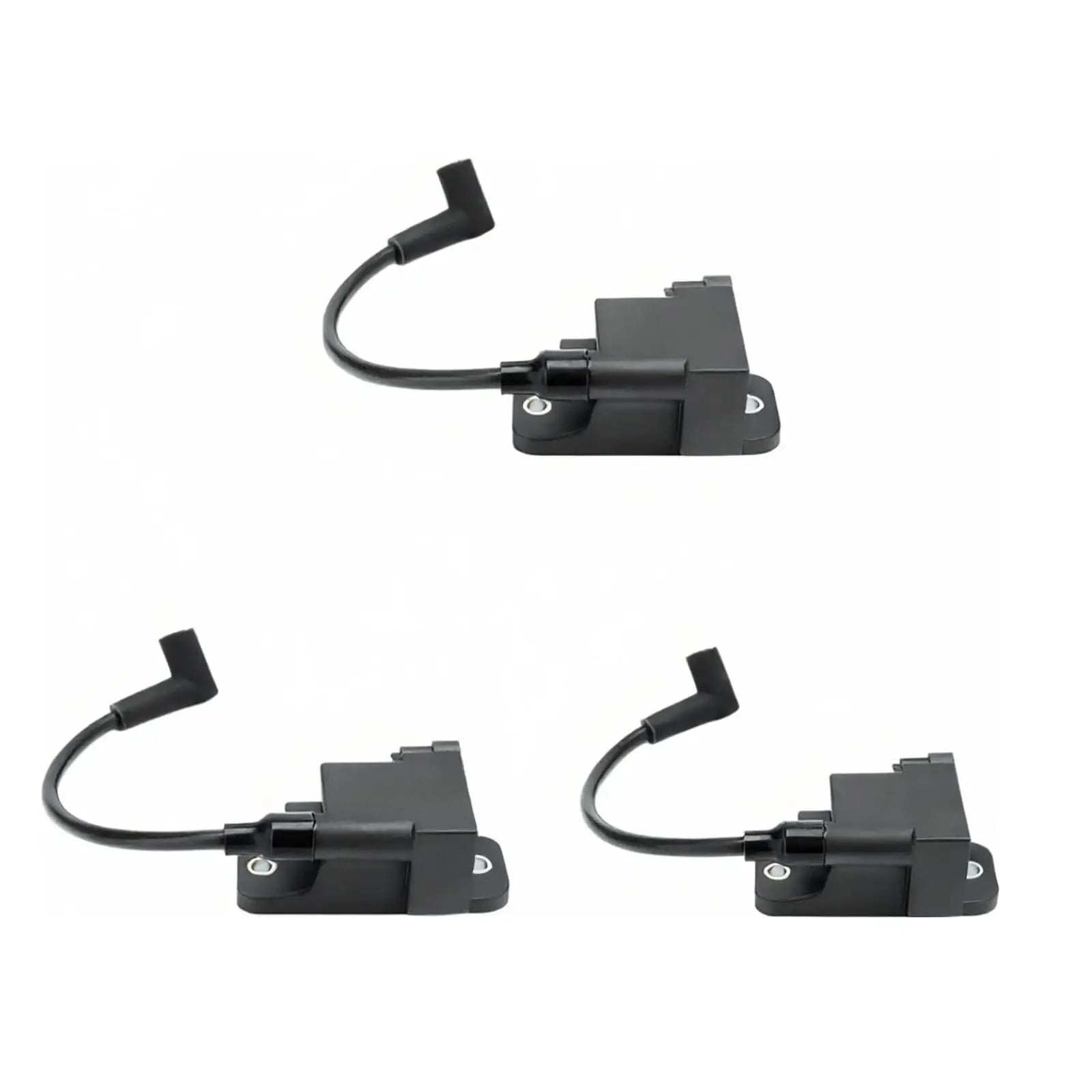

3-Pack 827509A10 CDM Module Ignition Coil for Mercury Outboard 50 75 90 115 125HP 2-Stroke | Replaces 827509T7 114-7509 Force Mariner 4-Cyl

3pcs/set Outboard Ignition Coil CDM Module for Mercury MerCruiser 114-7509 827509T7 827509A10 Engine 4 Pin

Function
-  Boost your engine's performance with our high-quality ignition coil CDM module
-  Compatible with Mercury MerCruiser engines from 1996-2007 (30-300HP) and Force engines from 1996-1999 (40,50,75,90 & 120HP)
-  Replaces OE part numbers 114-7509, 827509A 1, 827509A 3, 827509A 4, 827509A 7, 827509A 8, 827509A 9, 827509A10, 827509T 7, 9-23202, AMW-3454
-  Professional marine mechanic installation recommended for optimal results
-  Enjoy peace of mind with our 1-year limited warranty

Fitment
Fits 30 HP 2 cylinder engines from 1996 to 2006 with serial number range 0G380075-0T979999
Fits 30 HP 3 cylinder engines from 1998 to 2001 with serial number range 0G590000-0T999999
Fits 40 HP 2 cylinder engines from 1996 to 2005 with serial number range 0G380075-0T999999
Fits 100 HP 4 cylinder engines from 1996 to 2000 with serial number range 0G438000-0G965520
Fits 200 HP 6 cylinder engines from 2000 to 2005 with serial number range 0G960500-1B226999

Part Number
114-7509
827509A3
827509A4
827509A7
827509A8
827509A9
827509A10
827509T7

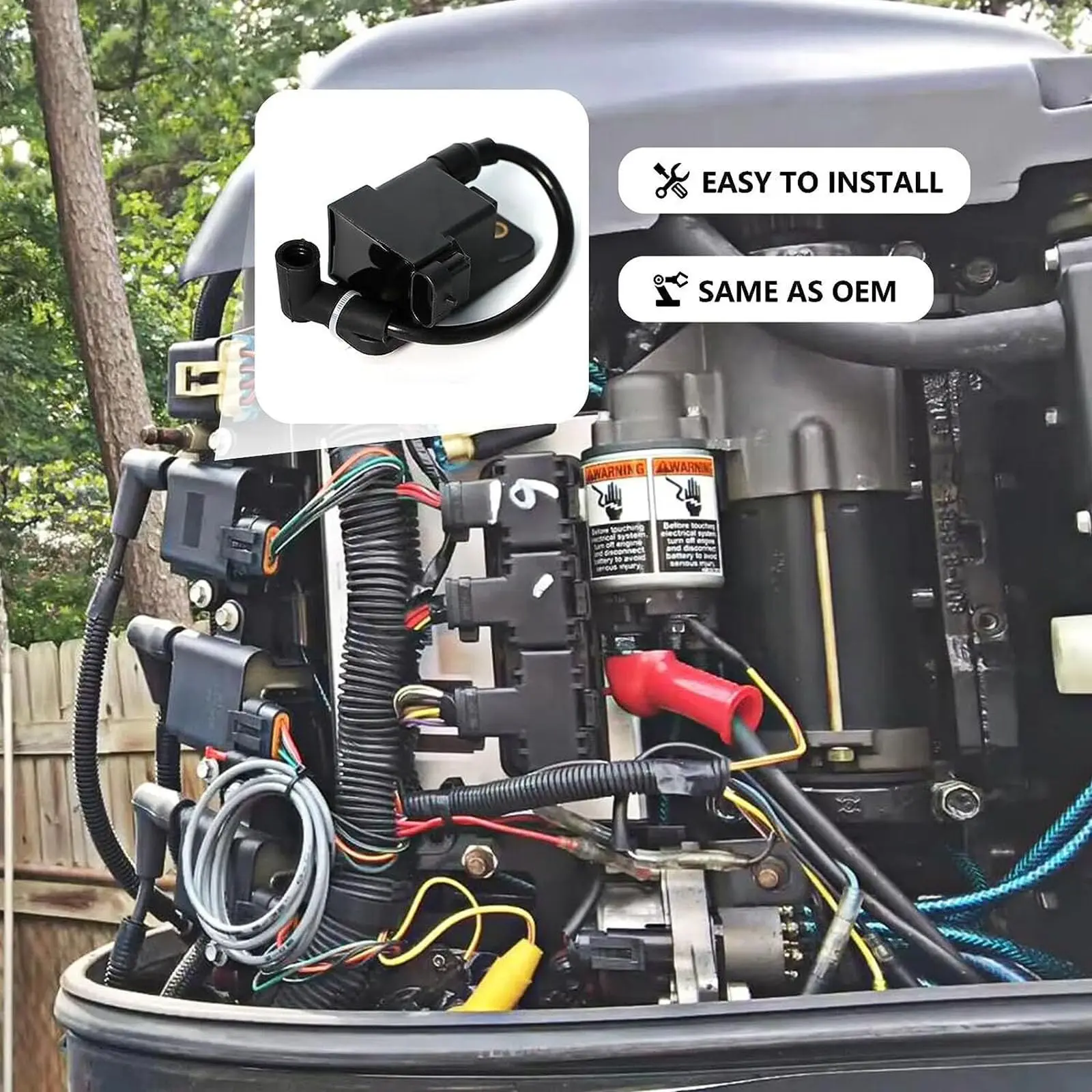

How to install ignition CDM module 114-7509 ?
-  Disconnect and clean all engine and battery ground wires
-  Disconnect the old CDM Module and remove the high tension coil wire from the spark plug
-  Unbolt and remove the old CDM Module. (Note the direction of the spark plug wire)
-  Check for dc voltage on the kill (stop) wires (usually black/Yellow) with the key switch in the on and off position.
-  Apply a slight amount of dielectric grease to the seal area of the wire connector from the engine harness
-  Apply a slight amount of dielectric grease to the outside of the new spark plug wire and thread the spark plug wire into the new CDM Mod
-  Bolt the new CDM Module onto the engine(orient the new CDM Module so that the spark plug wire is pointed in the same direction as the original)
-  Plug in the connector from the wire harness into the new CDM Module and connect the spark plug wire to the spark plug
