24V 36V 48V 60V Electric Bike Brushless Controller with LCD Display E-bike Accessories Parts E-Scooter 500W S886 S830 G51 S866
€93,05
Angebotspreis
€93,05
Normaler Preis
€0,00
SPECIFICATIONS
124DX Display: Electric Bicycle Conversion Kits
Brand Name: NONE
Electric Bike: Brushless Controller
High-concerned chemical: none
Origin: Mainland China
Power: 500W
Type: Controller,brushless
Voltage: 24v 36v 48v
Must match 2 communication protocol for controller use！！！
How to use self-study:
When using the controller and the motor to work for the first time, should first use self-study wire.
Step 1. Connect the motor wire, Hall wire, battery wire, and other function wires.
Step 2.connect the self-study wire, the motor rotates forward, let it learn automatically for 10-20 seconds, disconnect the self-study wire, connect to other function wires, complete the self-study, and do not need to use it in the future.

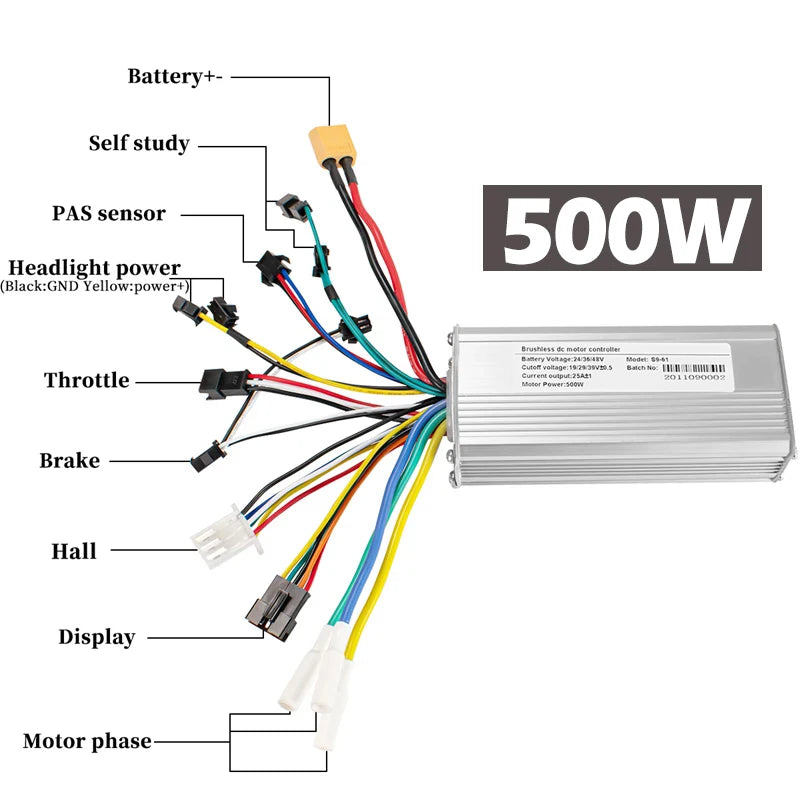

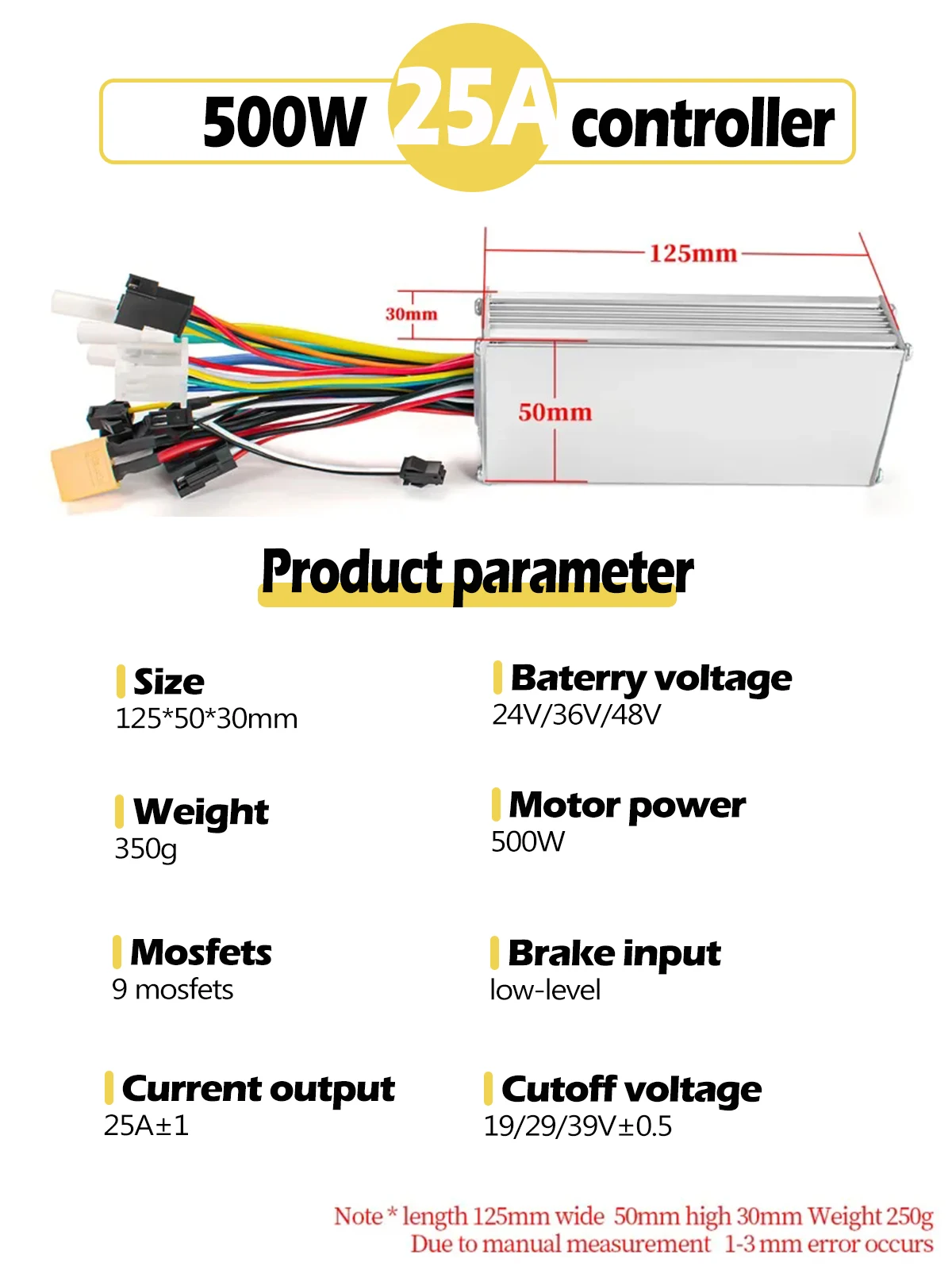

500W Brushless Controller:
● Rated Voltage: 24/36/48V
● Rated Power: 500W
● Current: 25A±1A

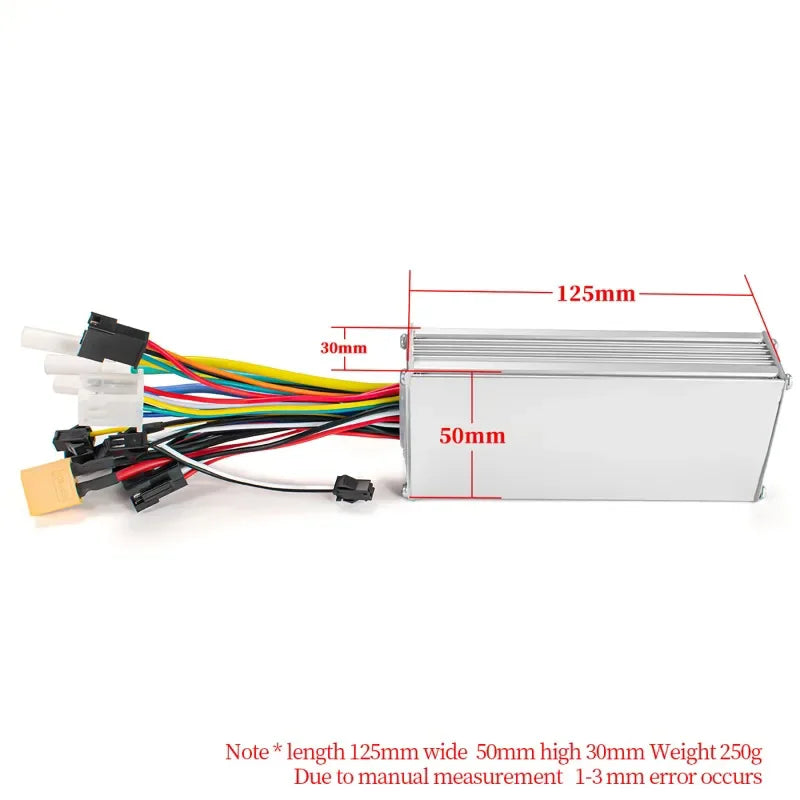

● Controller Size: 125mm*50mm*30mm
● Mosfet: 9Mos
● Use for: Electric Bike, E-Scooter, E-Car, E-golf car etc
