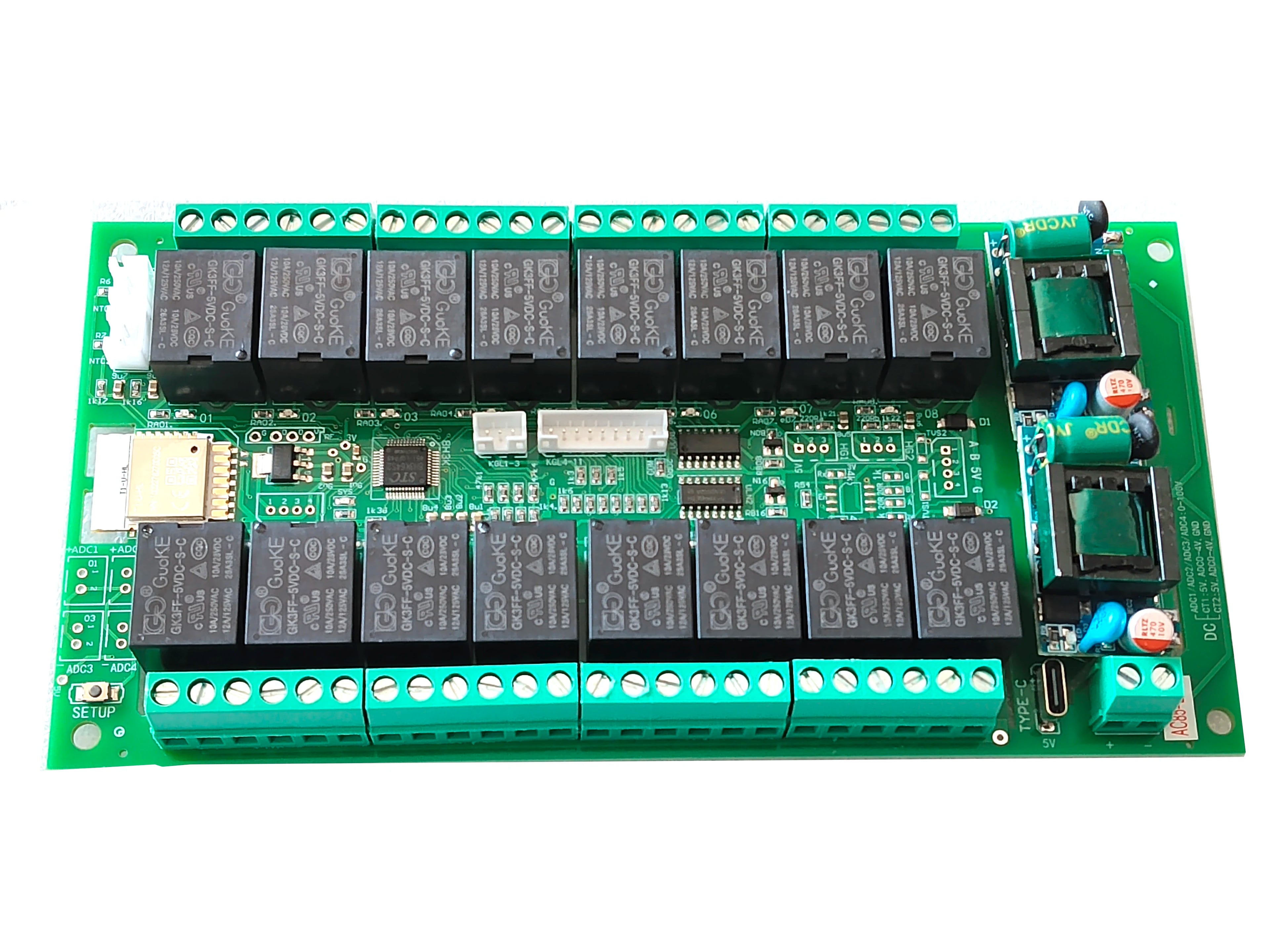

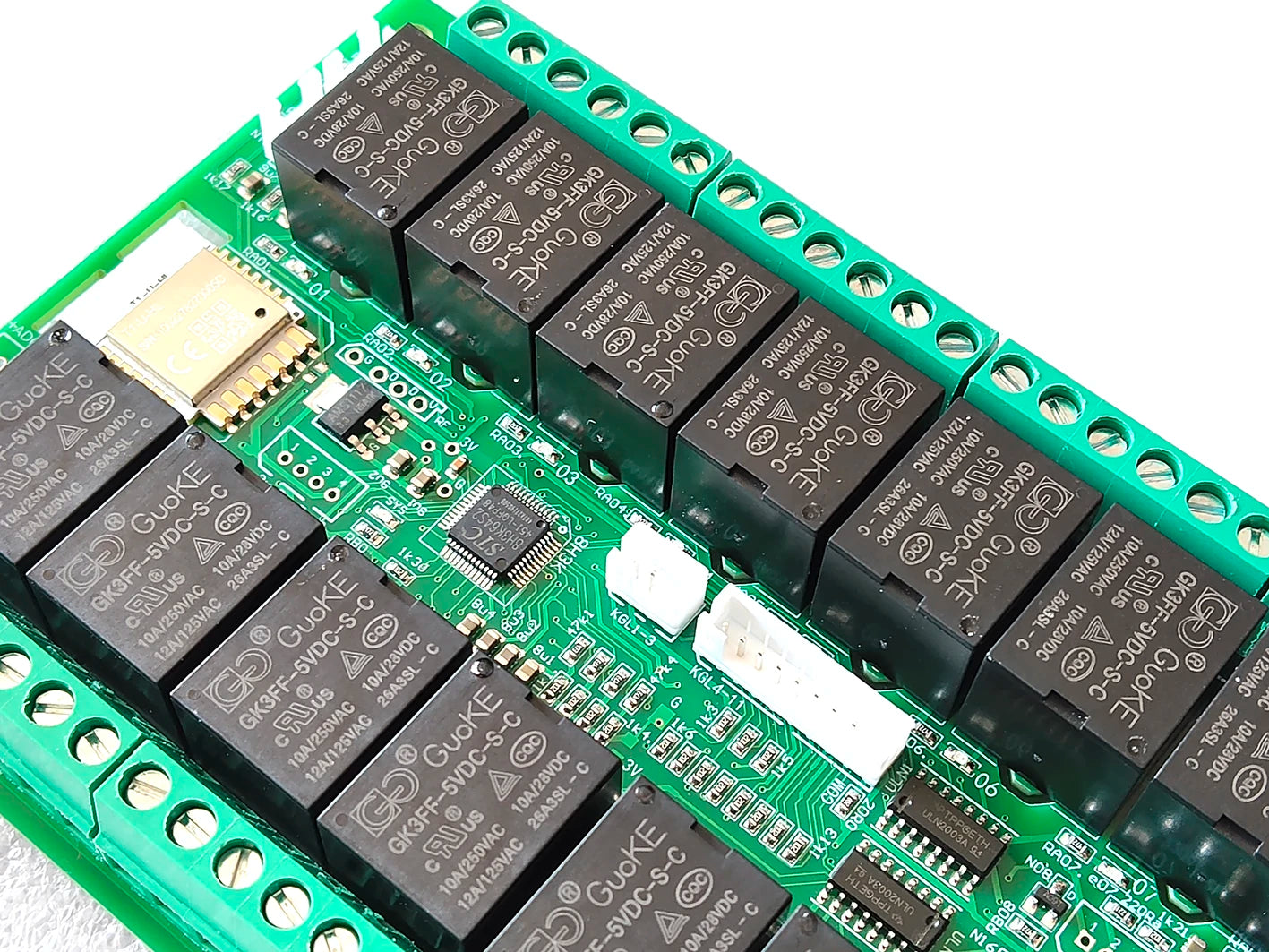

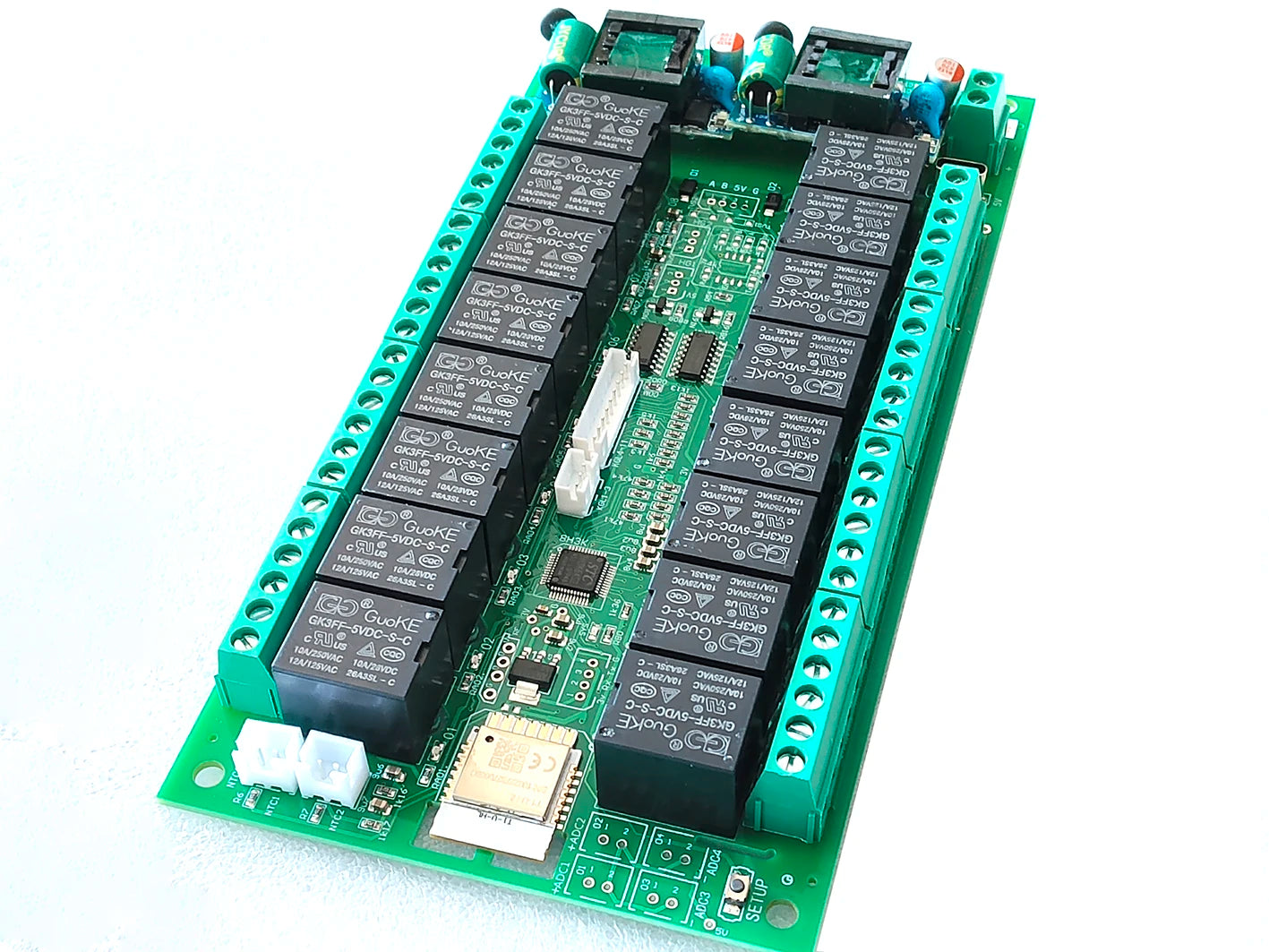

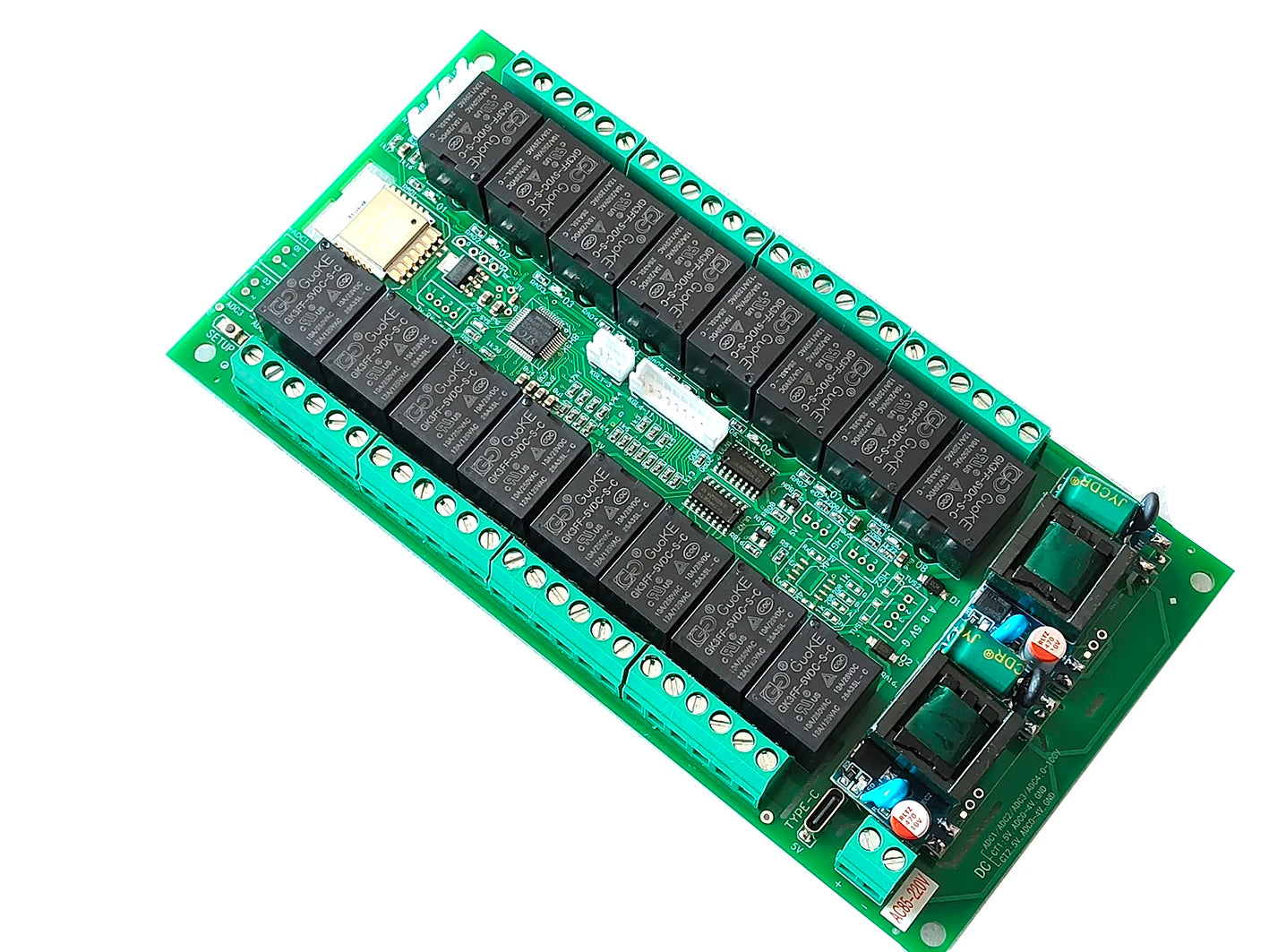

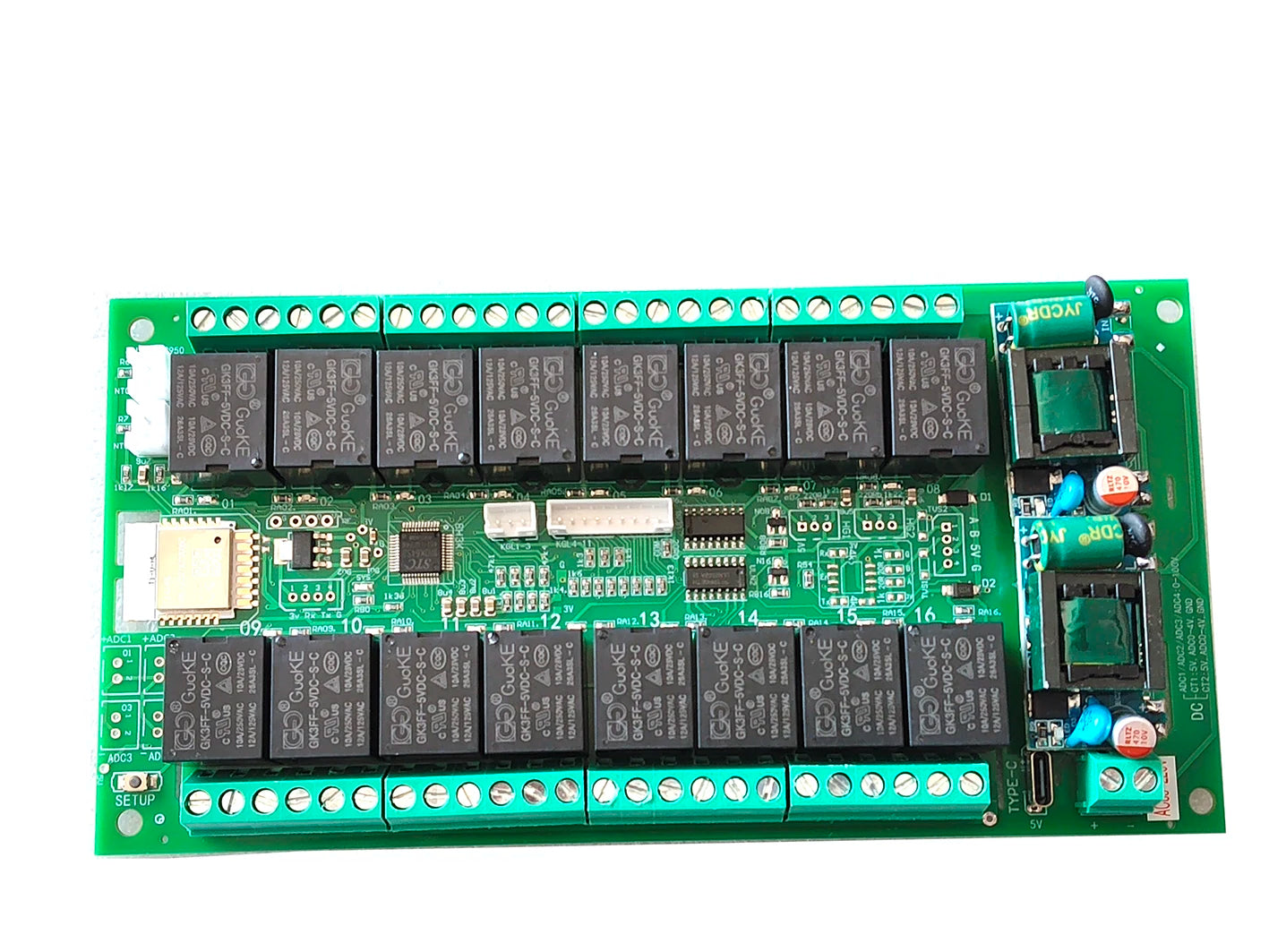

11 switch input 16 Channel Works with Tuya WiFi Zigbee Smart Relay Module board controller interlock Jog Multi-Scenario Control

No RF433MHZ module;

Module size: 180x90x20mm

with switch inputs;

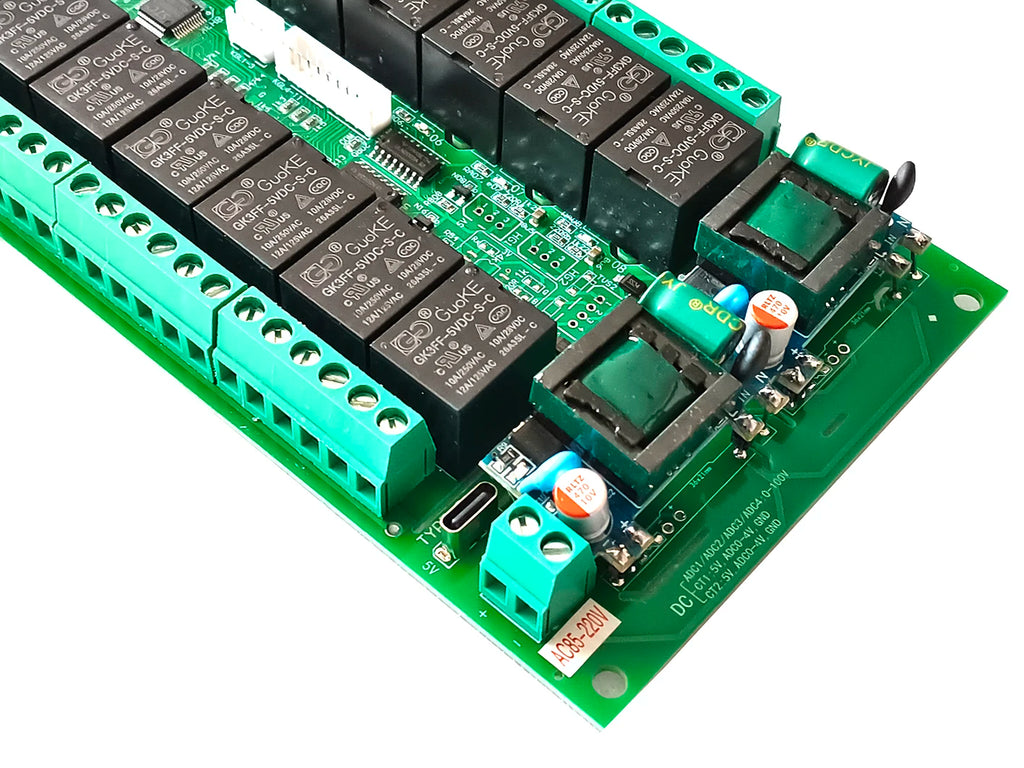

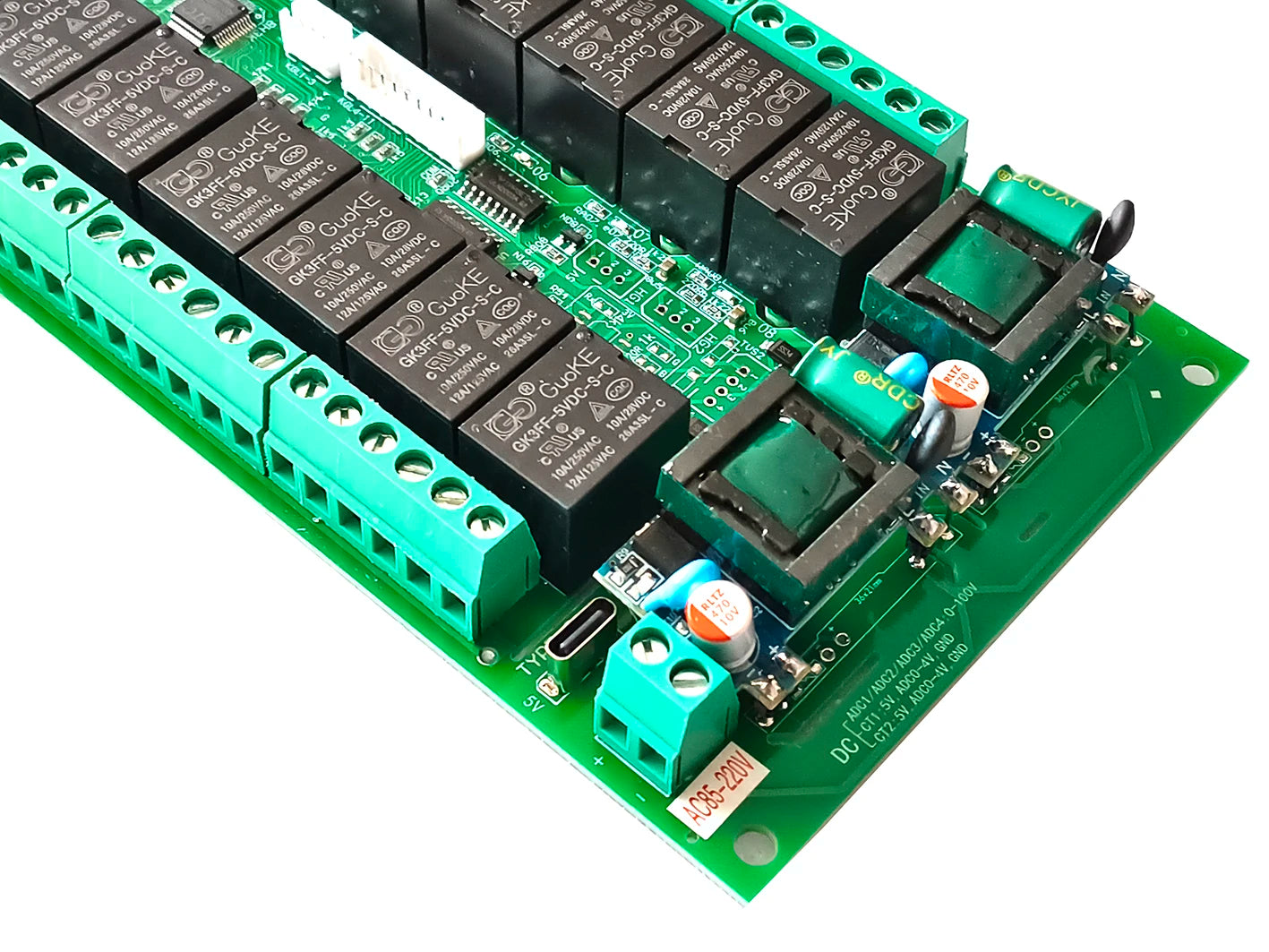

The product is powered by 5V type-c interface or DC7-27V and 5V type-c interface or AC85-250V power supply

The product models are divided into:
1: DC7-27V WIFI version
2: AC85-250V WIFI version
3: DC7-27V zigbee version
4: AC85-250V zigbee version

[WiFi/Zigbee Remote] (Basic Function)
Download "Tuya Smart" from the software market, install and register it, power off the module, reopen it, open the app, and click the+sign in the upper right corner to add a device.
Scene linkage setting: Set in the graffiti app, which can set multiple scene control relay switches



Attention: Power off and restart, wait for the indicator light to flash before operating,

Action explanation: Self locking (press once to open, then press once to close)
Action explanation: Jog (press once and then merge, automatically turn off after about 0.5 seconds), (this function needs to be set on the APP)
Action explanation: Fully open (this key can only be turned on and cannot be turned off) (This function needs to be set on the APP)
Action explanation: Fully close (this key can only be turned off and cannot be turned on) (This function needs to be set on the APP)
Action explanation: Interlock (this function needs to be set on the APP)
Action explanation: Timing (this function needs to be set on the APP)
Action explanation: Delay (this function needs to be set on the APP)





Interlock setting instructions: (Tuya APP settings are required)
● Input 2 above and 2 below to indicate channel 1.2. Interlock
● Input 3 above and 3 below to indicate channel 1.2.3 interlock
Enter 10 above and 10 below to indicate channel 1.2.3.4.5.6.7.8.9.10 interlock
Input 4 above and 2 below to indicate channels 1.2. Interlock and 3.4. Interlock
● Input 8 above and 2 below to indicate 1-2 interlocking, 3-4 interlocking, 5-6 interlocking, 7-8 interlocking
●Enter 10 above and 5 below to indicate channel 1.2.3.4.5 interlock and 6.7.8.9.10 interlock
●Enter 0 above and 0 below to indicate no interlocking

Inching Settings
●Input channel number 1, and the current jog time of channel 1 will be displayed below. The jog time can be changed, such as 500 milliseconds.
●Input channel number 2, and the current jog time of channel 2 will be displayed below. The jog time can be changed, such as 500 milliseconds.
●Entering 0 for jog time indicates that this channel does not jog, and so on, other channels can be set accordingly.
Description: Inching time range: 1-999999999 milliseconds

[Power on settings]
● Enter channel number 1, and the current channel value will be displayed below
● Enter 1 below to automatically open this channel when powered on
● Enter 2 below to turn off this channel when powered on
● Input 3 below to maintain the switch state before powering on and off
● Enter 4 below to force the power on and the phone will never be able to operate this channel

[Delayed opening] (Some products do not support it, and additional requirements can be added before shooting)
Enter 1 above and the current setting value of channel 1 will be displayed below
Enter 3000 below to indicate that this channel will not open when clicked on, but will automatically open after 3000 milliseconds,

[Delayed Close] (Some products do not support it, and additional requirements can be added before shooting)
●Enter 1 above and the current setting value of channel 1 will be displayed below
●Enter 3000 below to indicate that this channel does not close when clicked, but automatically closes after 3000 milliseconds,

[Factory reset]
Press and hold "Set" for 10 seconds, and release the hand when the indicator flashes quickly
